► Digital Eyepiece Micrometer
► Innovative design of control buttons and LCD display.
► Auto motorized turret.
► Easy to set and visualize hardness scale (HV or HK)
► Selection of force unit (gf or N) and force duration
► Adjustment of the brightness of illuminating lamp
► Built in printer
► Automatic load control
|
Type
|

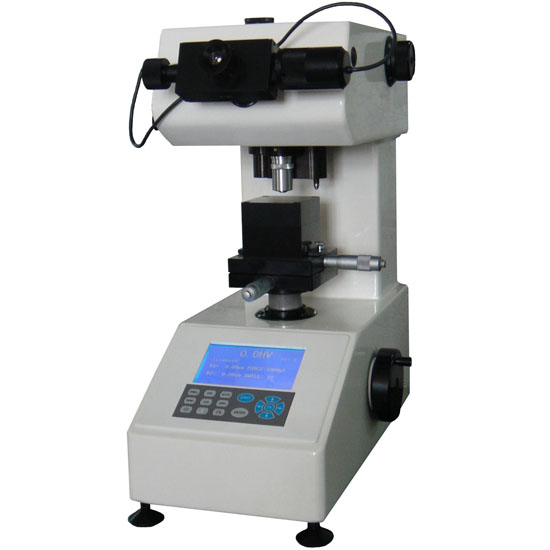

RHD-1000/2000 series
|
|
Lens/Indenter switch
|
With Motorized Turret
|
|
Test force
|
9.807, 4.903, 2.942, 1.961, 0.9807, 0.4903, 0.2452, 0.0981 N
1000, 500, 300, 200, 100, 50, 25, 10 gf
|
|
Loading mode
|
Program-controlled application, duration and removal of load
|
|
Duration
|
5 – 60 sec, selectable, In step of 5 sec.
|
|
Measuring range
|
5 HV – 3000 HV
|
|
Measuring
Microscope
|
Objective: 40x; 10x（for observation only）, Eyepiece: 15x
Total: 600x; 150x（For observation only）
|
|
Optical path
|
Measurement / Photo switch
|
|
Min. detection
|
0.025/0.05 µm
|
|
On the turret
equipped with
|
two indenters (Vickers & Knoop indenters)
and two objectives (40x & 10x)
|
|
Reading mode
|
Measurement with the eyepiece and the hardness value is displayed on LCD.
|
|
Data output
|
On LCD display：Load, Dwell, D1, D2, H values, Min, Max, Average, Divergence, S deviation, Converted HRC, HRA, HRB, and H gradient graph.
|
Max. test height
|
85 mm
|
Power supply
|
220VAC 50Hz or 110VAC 60Hz
|
|
Options
|
|
Weight
|
19.61N / 2000gf
|
|
Software
|
MH_VK Hardness test software, including:
CD for MH_VK software,
Picture capture card,
CCD camera & adaptor,
Connecting tube, MicroDog,
Manual & Installing Instruction for MH_VK
|
|
On the turret
equipped with
|
two indenters (Vickers & Knoop indenters)
and two objectives (40x & 10x)
|
