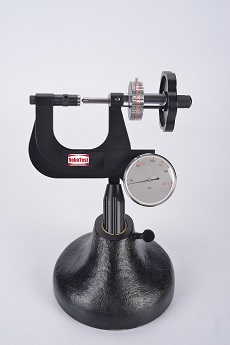

Portable Brinell and Rockwell Hardness Tester PHBR Series

The PHBR series portable Briness & Rockwell hardness testers are designed and developed based on the PHR series testers according to Brinell and Rockwell hardness testing methods. The test principle, test conditions and test accuracy are all up to the international standard ISO6508/6506.

The PHBR series hardness tester can work as both Rockwell and Brinell hardness tester. They can solve most of the hardness testing problems in the industry. PHBR series Brinell & Rockwell hardness testers have a higher testing accuracy. The test results meet most requirements of product standard or drawings and can be well accepted in international trade.

► Brinell and Rockwell: Add the functions of Brinell hardness test on PHBR series testers. Combined Brinell and Rockwell test functions in one instrument

►  Test Principal: Test method follows Brinell and Rockwell hardness test and accuracy in accordance with ISO 6506, 6508 and ASTM E10, E18.

►  Wide Application: Different modes and anvils are available for parts in various sizes and shapes.

Name

Portable Brinell and Rockwell Hardness Tester

Rockwell Initial Force

10 kg

Rockwell total test force

60Kg,100Kg,150Kg

 Brinell test force

62.5Kg,125Kg,187.5Kg

 Rockwell indenter

120°diamond cone, 1.588mm hard alloy ball

 Brinell test ball

2.5mm, 5mm hard alloy ball

Indicator Error

Complies with ISO and ASTM

Repeatability Error

Complies with ISO and ASTM

 Test resolution

Rockwell 0.5HR, Brinell 0.005mm(indentation diameter)

Test range

Rockwell HRA, HRB, HRC, Brinell 16-650HBW

 Application range

Rockwell for products or semi-finished products of common metals, including steel, cooper, aluminum, carburized layer, hard alloy, etc. Brinell for castings, forgings, steel  raw materials, non-ferrous metal

ISO 6506, 6508 and ASTM E10, E18
